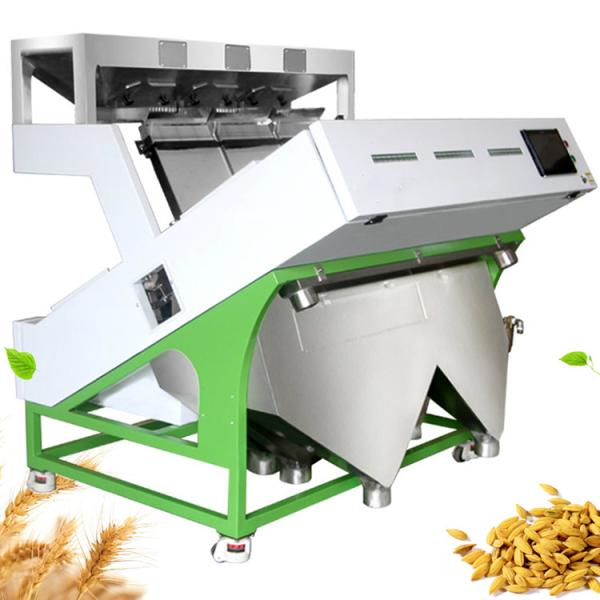

High-resolution CCD optical Grain Color Sorter CCD Wheat Color
Sorter Machine
Product Description
Color sorter machines are mostly used in sorting grain
(agricultural products). The wheat sorting industry has a very big
market,wheat sorting technology is according to the color
differences of wheat materials, using a high-resolution CCD optical
sensor to separate different stones, wheat, etc. It is the final
step after polishing rice with a wheat polisher. Our wheat color
sorter machine improve product quality and add social benefits.
High-resolution CCD optical Grain Color Sorter CCD Wheat Color
Sorter Machine Technical Parameters
| Model | 6SXM-68 | 6SXM-136 | 6SXM-272 | 6SXM-408 | 6SXM-612 | 6SXM-680 |
| Output(t/h) | 0.6-1 | 1.2-2 | 2.4-5 | 4-7 | 6-10 | 8-16 |
| Carry over Rate(Bad:Good) | >12.5:1 | >12.5:1 | >12.5:1 | >12.5:1 | >12.5:1 | >12.5:1 |
| Sorting Accuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Voltage(V/Hz) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Power Supply(Kw) | 1.0-1.3 | 1.4-1.8 | 2.5-2.9
| 4.8-5.2 | 6.6-7.2 |
8.5-10.5
|
| Pressure(Mpa) | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Air Consumption(L/min) | <1000 | <1800 | <3200
| <4800 | <5600
| <6100 |
| Weight | 260kg | 440kg | 820kg | 1180kg | 1620 | 2200
|
| Dimension | 950*1510
*1428mm | 1290*1510*1770mm | 2010*1530*2100mm | 2680*1530*2100mm | 3710*1530*2100mm | 4200*1530*2250mm |
Examples of Sorting
High-resolution CCD optical Grain Color Sorter CCD Wheat Color
Sorter Machine Advantages
High-resolution CCD optical Grain Color Sorter CCD Wheat Color
Sorter Machine Working Principle
When color sorter is working, feed hopper in the materials under
the action of vibrator is uniform distribution in each chute.
The CCD signal while the materials are dropping is in testing. If
it is found that there are unqualified materials or impurities in
the materials, the ejector will blow the defective goods in the
hopper.
Real Pictures Show:
Mounting Dimensions
Our Service
Before Sale Service
We will provide detailed solutions for your special requirement and
help you know more about our color sorter.
After Sale Service
We will test your products at your plant, training your stuff, set
every file for customer to serve all round service, so as to ensure
your machine working under the best situations.
We provide lifelong software upgrade services for our customers for
free.
From the date of purchase machine, we can provide one year free
maintenance ( not the reason of vandalism and something unexpected,
excluding delicate fittings).
Engineers available to service machinery overseas, we also can
train technical stuff for customers.
