Green Coffee Bean Sorting Machine Roasted Coffee Bean Color Sorter
This coffee bean color selection machine adopts high-end CCD sensor
imported from Japan, high resolution custom 54-megapixel camera,
unique algorithm to identify tiny defects, full color wide
spectrum, intelligent system, simple operation. It is also widely
used in the screening of rice, soybean, grain, nut and so on in
fast food factory, mill mill, rice factory, edible oil factory and
so on.
Product Paraments:
| Model | CQ-32 |
| Executive units | 32 |
| Production Capacity | 250kg-300kg/hour |
| Voltage | 110V-220V/ 50-60HZ |
| Power | 800W |
| Rejection rate | ≥11:1 |
| Sorting accuracy | ≥99.99% |
| Air supply pressure | 0.5-0.8Mpa |
| Air consumption | ≤120L/min |
| Weight | 150kg |
| Dimension | 780*450*1370mm |
| Warranty | 1 year |
Product Features:
Latest full-color imaging and analysis technology,high-speed
processing,accurate identification.
Multi-function,multi-purpose,widely used for rice,cereal,
plastics,chinese medicine.
High level AI self-learning function,One-key automation,user
friendly interface,easy operation.
Color sorting combined with shape sorting and size sorting, to sort
difficult impurities like micro color difference, tiny bad spot
etc.
High and specification ensures high stability,with high sorting
accuracy, small carry over and low energy consumption.
Small and portable, saving space and delivery cost, small machine
but super function.
Imported ejectors, much smaller air consumption, and much better
carry over, esp. good for small materials like quinoa, chia,
sesame…
Option: Remote control by smart terminals like cellphone, can
realize the off-site controls of the accuracy, production capacity.
Simple Effective-Installation&Start-up&Commissioning
services: remote teaching and guidance via live video online
through internet to worldwide.
Working Principle:

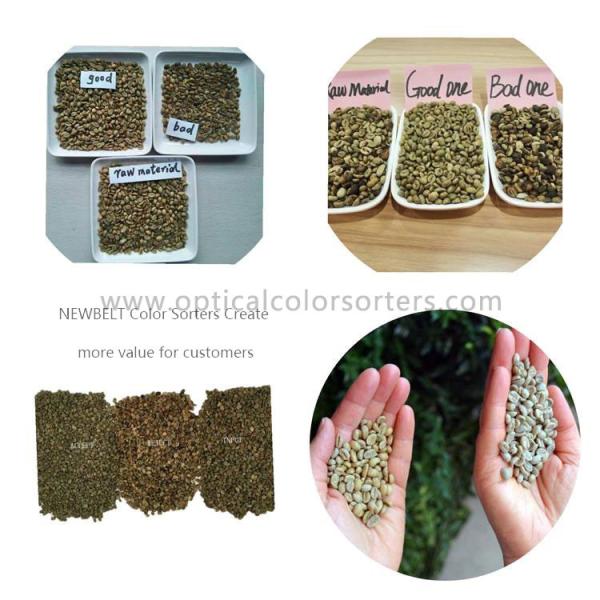

Examples of Sorting
Sorting Result
Product Function & Features
Ejector
Independent developed intelligent magnetic control high-frequency
ejector has no air leakage problem thanks to the replacement of
intelligent lever flexible return technology for traditional
pressure return technology.
Cloud Interconnection System
Thanks to AMD cloud service technical platform, remote control,
operation, matainence, software upgrade can be achieved and it can
detect and solve the LED light, electronical,mechanical and
adjustment problems.It also can provide real-time online tracking
service for the machine operation monitoring,data acquisition and
online instruction.
One Key Intelligent Operation System
The users can set the area of the material color, shape, size and
defect by themselves and confirm the rejected material, so the
machine can automaticly set the sorting solution of the material
according to the independent caculating, intelligent recognition
and intelligent sorting principles with one key intelligent control
technology.
Intelligent Visual Image Capture System
It can realize the visual dynamic image capture system by adopting
the high resolution full color CCD sensor and begeye low distortion
lens.
Inlelligent LED Light Control System
It can adjust the brightness of the LED automatically according to
the material sorting requirements and enviroment changing due to
advanced digital stepless automatic LED light adjustment
technology. The best sorting performance will be achieved.
