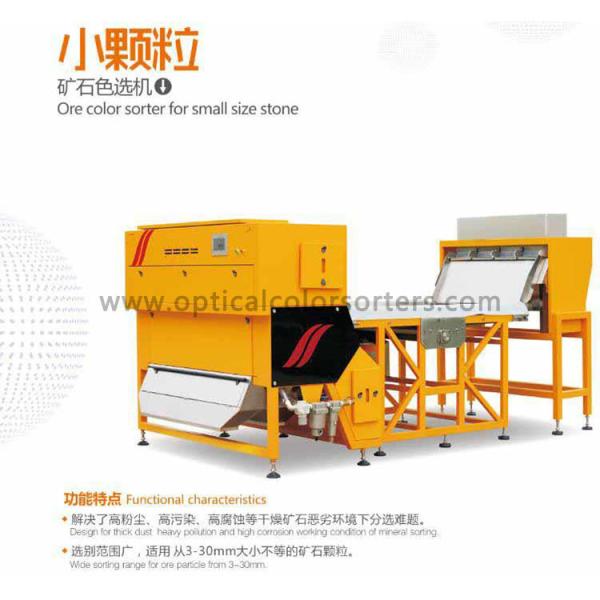

Small particle ore color sorter for small size stone
—We do it faster, more stable and higher.
Features:
1. Solve the problem of sorting under the harsh environment of dry
ores such as high dust, high pollution and high corrosion.
2. Wide selection range, suitable for ore particles ranging in size
from 3-30mm.
Small particle ore color sorter for small size stone Technical
advantages:
1. Image acquisition system
Using ultra-high full-color industrial special lens, higher
resolution, small distortion, and deep recognition of small and
fine impurities that cannot be selected by ordinary color sorters.
2. Image processing system
High-end full-color line scanning technology, DSP+FPGA cutting-edge
processing technology, a combination of color and shape, a variety
of complex algorithms, provide "color selection + shape selection"
solutions for different ore particle sizes.
3. The optical system
Low stray light imaging optical path system, which can identify low
light differences, original wide viewing angle technology, new LED
optical system, according to changes in the ore sorting material
environment, automatically adjust the light source to achieve the
sorting function.
4. Special feeding and conveying system for ore
According to the characteristics of large, small, dry and wet ore
particles, the crawler and vertical conveying methods are adopted
to ensure uniform feeding and conveying; the design of
easy-to-replace wear-resistant parts is more suitable for harsh
industrial and mining environments.
5. Clean the dust removal system
An automatic dust removal system device is added to realize
all-round dust removal and protection. It can be built according to
the output of special mines to ensure the stability of the sorting
effect.
6. Custom sorting structure
The crawler type and vertical structure are adopted to meet the
requirements of different particle sizes, reduce repeated crushing,
and improve economic benefits.
Small particle ore color sorter for small size stone parameter
| Model | RS1200CG |
| Adaptation range (mesh) | 3-10 | 10-30 |
| output(T/h) | 4-8 | 5-10 |
| voltage(V/Hz) | 220V(380V)/50Hz |
| Power(Kw) | 3.5 |
| Air consumption(L/min) | 3500 |
| Weight(Kg) | 1400 |
| Size(mm) | 3580*2040*1900 |
Remarks: The above parameters and indicators will vary due to
different materials or impurities, and the actual measurement of
the machine shall prevail.
Application scope:
Non-metallic minerals: potash feldspar, quartzite, talc,
phosphorite, calcite, dolomite, andalusite, fluorite, vermiculite,
mica, bentonite, kaolin, barite, feldspar, quartz, calcium
carbonate, cobblestone, Cryolite, garnet, limestone, manganese ore,
etc.
Black ore: monocrystalline silicon, polycrystalline silicon
Non-ferrous ores: copper, antimony, mercury, lead, zinc, tin,
nickel, magnesium, cobalt, aluminum, bismuth, silica.
Precious metals: gold, silver, zirconium, tungsten, molybdenum,
tantalum and niobium.
