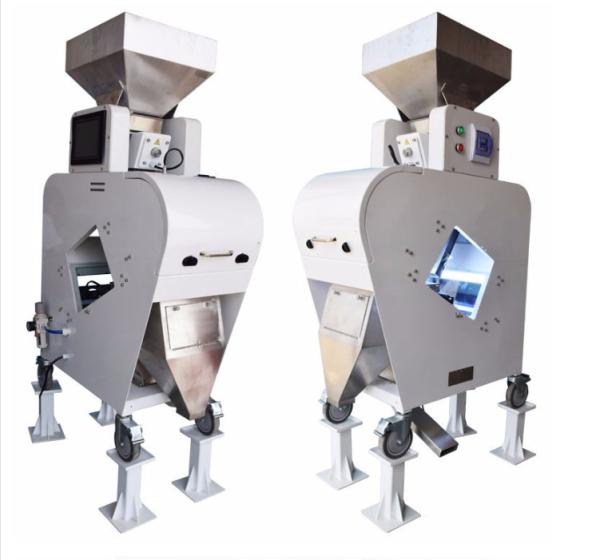

Mini Coffee Bean Color Sorter Coffee Bean Color Sorter Small Coffee
Bean Color Sorter Machine
Coffee is the second most sought world commodity, behind only oil.
Yet well ahead of natural gas, gold, sugar, and corn. 90 percent of
the world’s coffee production takes place in developing countries,
and the top three producing countries are Brazil, Vietnam and
Colombia. With this type of market demand and consumption,
precision agricultural machines (such as optical sorters) play a
critical role in the processing of Arabica and Robusta green coffee
beans. Wanxuan took more time to optimize the selecting mode to get
better accuracy of coffee beans after sorting. Whatever it is green
coffee bean or roasted coffee bean, you will get excellent accepted
beans by shapes or colors.
For other beans like soybean, kidney bean, chickpea, hyacinth bean,
lentil, pea and others, we can provide the excellent 99.9% accuracy
and processing speed 0.3-10 ton per hour.
For more information about color sorting machines or the process of
sorting coffee beans, feel free to contact WhatsApp: + 86-18012365661 or by email
box:service@opticalcolorsorters.com
Product Paraments:
| Model | CQ-32 |
| Executive units | 32 |
| Production Capacity | 250kg-300kg/hour |
| Voltage | 110V-220V/ 50-60HZ |
| Power | 800W |
| Rejection rate | ≥11:1 |
| Sorting accuracy | ≥99.99% |
| Air supply pressure | 0.5-0.8Mpa |
| Air consumption | ≤120L/min |
| Weight | 150kg |
| Dimension | 780*450*1370mm |
| Warranty | 1 year |
Product Features:
- Latest full-color imaging and analysis technology,high-speed
processing,accurate identification.
- Multi-function,multi-purpose,widely used for rice,cereal,
plastics,chinese medicine.
- High level AI self-learning function,One-key automation,user
friendly interface,easy operation.
- Color sorting combined with shape sorting and size sorting, to sort
difficult impurities like micro color difference, tiny bad spot
etc.
- High and specification ensures high stability,with high sorting
accuracy, small carry over and low energy consumption.
- Small and portable, saving space and delivery cost, small machine
but super function.
- Imported ejectors, much smaller air consumption, and much better
carry over, esp. good for small materials like quinoa, chia,
sesame…
- Option: Remote control by smart terminals like cellphone, can
realize the off-site controls of the accuracy, production capacity.
- Simple Effective-Installation&Start-up&Commissioning
services: remote teaching and guidance via live video online
through internet to worldwide.
Para defectos primarios, tenemos una eficiencia del 100% en
eliminación de defectos graves o
granos completamente manchados (negros y rojos)
Product Function & Features
Ejector
Independent developed intelligent magnetic control high-frequency
ejector has no air leakage problem thanks to the replacement of
intelligent lever flexible return technology for traditional
pressure return technology.
Cloud Interconnection System
Thanks to cloud service technical platform, remote control,
operation, matainence, software upgrade can be achieved and it can
detect and solve the LED light, electronical,mechanical and
adjustment problems.It also can provide real-time online tracking
service for the machine operation monitoring,data acquisition and
online instruction.
One Key Intelligent Operation System
The users can set the area of the material color, shape, size and
defect by themselves and confirm the rejected material, so the
machine can automaticly set the sorting solution of the material
according to the independent caculating, intelligent recognition
and intelligent sorting principles with one key intelligent control
technology.
Intelligent Visual Image Capture System
It can realize the visual dynamic image capture system by adopting
the high resolution full color CCD sensor and begeye low distortion
lens.
Inlelligent LED Light Control System
It can adjust the brightness of the LED automatically according to
the material sorting requirements and enviroment changing due to
advanced digital stepless automatic LED light adjustment
technology. The best sorting performance will be achieved.
Examples of Sorting
