Product Description

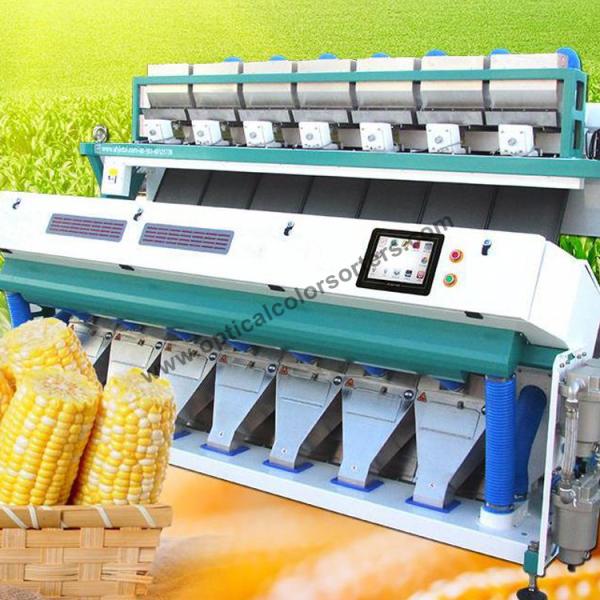

Intelligent corn color sorting machine,RGB CCD optical sorting
machine, 1-14 chutes, 64-768 channels, separate the spotted, mouldy
corn out from good grain, increase the production of maize corn
processing line's capacity.
Technical Parameters
| Model | ZF300 | ZF500 | ZF700 |
| Throughput(T/H) | 1.0-3.0 | 2.0-5.0 | 3.0-8.0 |
| Voltage(V) | 110-250V(50-60HZ) |
| Power(KW) | 1.8 | 2.6 | 3.5 |
| Weight/(KG) | 885 | 1275 | 1665 |
| Dimension(L*W*H/mm) | 1174*1658*2038 | 2402*1658*2038 | 3030*1658*2038 |
| Sorting accuracy(%) | ≥99 |
| Rejection rate(%) | ≥10:1 |
| Air consumption(L/min) | 800-1600 | 1300-2200 | 1800-3600 |
| Notes | Subject to different impurities of raw materials,parameters listed
in table will change to some extent. |
Examples of Sorting
Product Advantages
* Our optical sorting technology with high resolution pixel CCD
camera,high reliability and long life LED light source;
* With efficient and stable software system, intelligent algorism,
user friendly interface;
* Better sorting accuracy, lower carryover and bigger production
capacity;
* SOC platform to realize stable, reliable, ultra-fast mass data
processing;
* Corn color sorter machine with expert sorting solution realizes
one key debugging;
* Our remote debugging, diagnosing and maintenance. Four core
technologies to ensure your operations.
Working Principle
When color sorter is working, feed hopper in the materials under
the action of vibrator is uniform distribution in each chute. The
CCD signal while the materials are dropping is in testing. If it is
found that there are unqualified materials or impurities in the
materials, the ejector will blow the defective goods in the hopper.
Our Service
Before sales
1. Consult the customer's specific needs and site conditions.
2. Provide the most suitable model and give specific plans and
recommendations based on the location of the power.
3. Customer audit plan, communicate and adjust where there are
doubts, to ensure the details of the plan are correct.
After sales
1. Provide production progress and deliver on time and quality.
2. According to the customer's request, arrange the engineer to go
to the local debugging color sorting machine in time to ensure the
machine is running satisfactorily.
3. The engineer teaches the customer to operate the machine,
routine maintenance, and fault testing.
4. At the end of the overseas service of the engineer, the customer
signs the acceptance document and gives the service evaluation
level.
5. Provide 1 year warranty.
6. Provide lifetime technical support and contact the engineer
directly if you have any questions.
7. Archive the customer's machine data, contact the customer
regularly, consult the machine operation, and ensure that the
machine is running well.
Why Chose Our Corn Color Sorting Machine?
1.Over 14 years experiences.focus on sorter machine.The biggest
sorter machine factory.
2.After-sales service guarantee: We have a professional after-sales
service team, one-on-one customer service to help customers install
and repair.
3.We have service station, cooperate reseller in more than 40
countries.
4.Quality assurance of raw materials:The raw materials we purchase
are certified qualified products.
5.Quality process assurance: We pass ISO quality management system,
each process of production are under strictly standard.
6.System test: Our technical engineers check the product
performance, to ensure that the factory products in full compliance
with customer requirements.
7.Shipping guarantee: we have professional packaging operations
team, independent export qualification to ensure product safety and
stability to reach customers in the hands.
