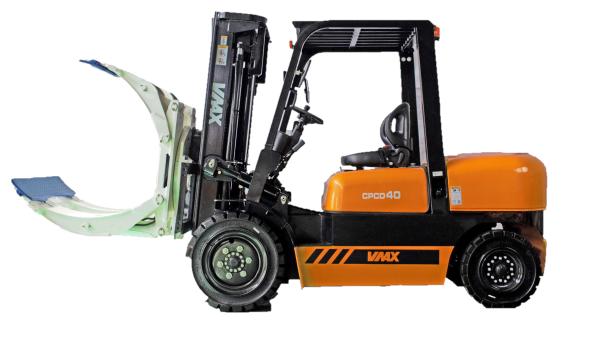

Orange Industrial Counterbalance Forklift Fork Truck Warehouse Storage

automated pallet truck details of standard configurations:

Diesel forklift truck with 4,000kg load capacity

Model Number: CPCD40

Equipped with China engine C490BPG,Hydraulic transmission with TCM-technology

Standard with 2-stage wide-view mast, lifting height is 3,000mm

Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.

Back-up buzze, rearview mirror, full set of lights and so on.

automated pallet truck specification:

3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION
Model		Unit	CPC40/CPCD40
Power type			Diesel
Rated capacity		kg	4000
Load center		mm	500
Mast Lifting height		mm	3000
Free lift height		mm	175
Fork size(LWT)		mm	1070×125×45
Tilting Angles(Front/Rear)		deg	6°/12°
Front overhang		mm	485
Exterior Size	Length without fork	mm	2680
	Overall width	mm	1225
	Mast drop	mm	2065
	Max.lift	mm	4250
	Front-wheel Overhead	mm	2070
Min Turning Radius		mm	2420
Min.intersecting aisle		mm	2100
Speeds	Max Driving speeds	km/h	18.5/20
	Lifting speeds	mm/s	470/520
	Lowering speeds	mm/s	550/520
Max.grade ability		%	20
Total weight		kg	4300
Tires	Front		28*9-15-12PR
Tires	Rear		6.5-10-10PR
Wheelbase		mm	1700
Tread	Front	mm	1000
Tread	Rear	mm	970
Min.ground clearance		mm	110
Engine	Model		XINCHANG490BPG
	Rated output	kw/rpm	37/2650
	Rated torque	N.m/rpm	148/1800
	No.of cylinder		4
	Displacement	L	2.54
Fuel tank capacity		L	52
