    Food Warehouse Manual Transmission 3000kg Heavy Duty Forklift Truck

    Ask Lasest Price
    Brand Name : VMAX
    Model Number : CPC30
    Certification : CE, BV,SGS,ISO9001
    Price : $7,080.00-$10,500.00/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5,000 units/year
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    Food Warehouse Manual Transmission 3000kg Heavy Duty Forklift Truck



    diesel powered forklift truck with rated capacity 3000kg manual transmission safety​:

    Specifications
    1ManufacturerVMAX
    2ModelUnitCPC30
    3Power typeDIESEL
    4Rated capacitykg3000
    5Load centermm500
    6Operator typeDrive in seat
    Size
    7Max. lift height of mast with Load-backrestmm4262
    8Max.lift height of forkmm3000
    9Height of mastmm2065
    10Free lift height(with backrest)mm160
    11Height of Load-backrestmm1240
    12Distance from seat to overhead guardmm1000
    13overhead guard heightmm2090
    14Length without forkmm2682
    15Front overhangmm479
    16Rear overhangmm495
    17Wheel basemm1700
    18The height of traction pinmm310
    19Min. ground clearancemm135
    20Overall widthmm1225
    21The distance between forksmm1060/250
    22Tread(front /rear)mm1000/970
    23Min. Turning radius(outside)mm2400
    24Min. Turning radius(inside)mm200
    25Min. Intersecting aislemm2380
    26Mast tilt angledeg6° / 12°
    27Fork sizemm1070*125*45
    Performance
    28
    Speeds
    Max.Drive speeds(with/without full load)km/h18/19
    29Lifting speeds (with /without full load)mm/s440/480
    30Lowering speeds(with /without full load)mm/s450/500
    31Max. tractive force(with /without full load)KN20/16
    32Max.grade ability (with/without full load)%20/20
    Weight
    33Total weightkg4690
    34Weight Distribution full load (front/ rear)kg6543/727
    35Weight Distribution zero load(front / rear)kg1708/2562
    Wheels and Tyres
    36Quantity of wheels2 X / 2
    37Type of tyresAir tires
    38TiresFront28x9-15-12PR
    39Rear6.50-10-10PR
    40Driving Brakehydraumatic pedal
    41Parking BrakeMechanical manual
    Control device for driving and transmitting
    42BatteryV/AH12/80
    43Engine (standard)ModelISUZU C240PKJ-30
    44Rated outputkw/rpm35.4/2500
    45Rated torqueN.m/rpm137.7/1800
    46No.of cylinder4-84X102
    47DisplacementL2.369
    48Fuel tank capacityL60
    49Number of speeds for transmissionpower pallet transmission
    Words in red could be changeable for your special requirments.

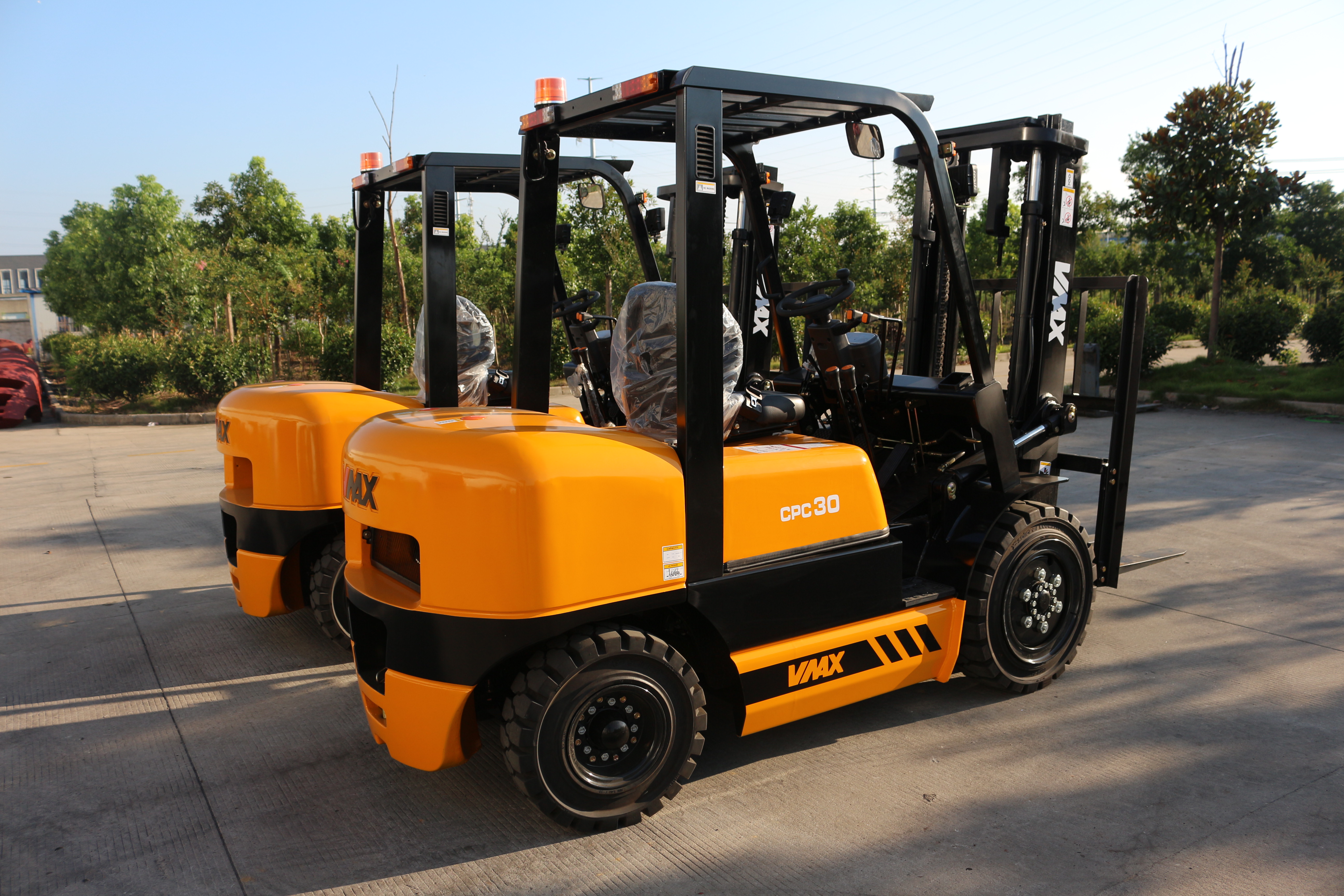

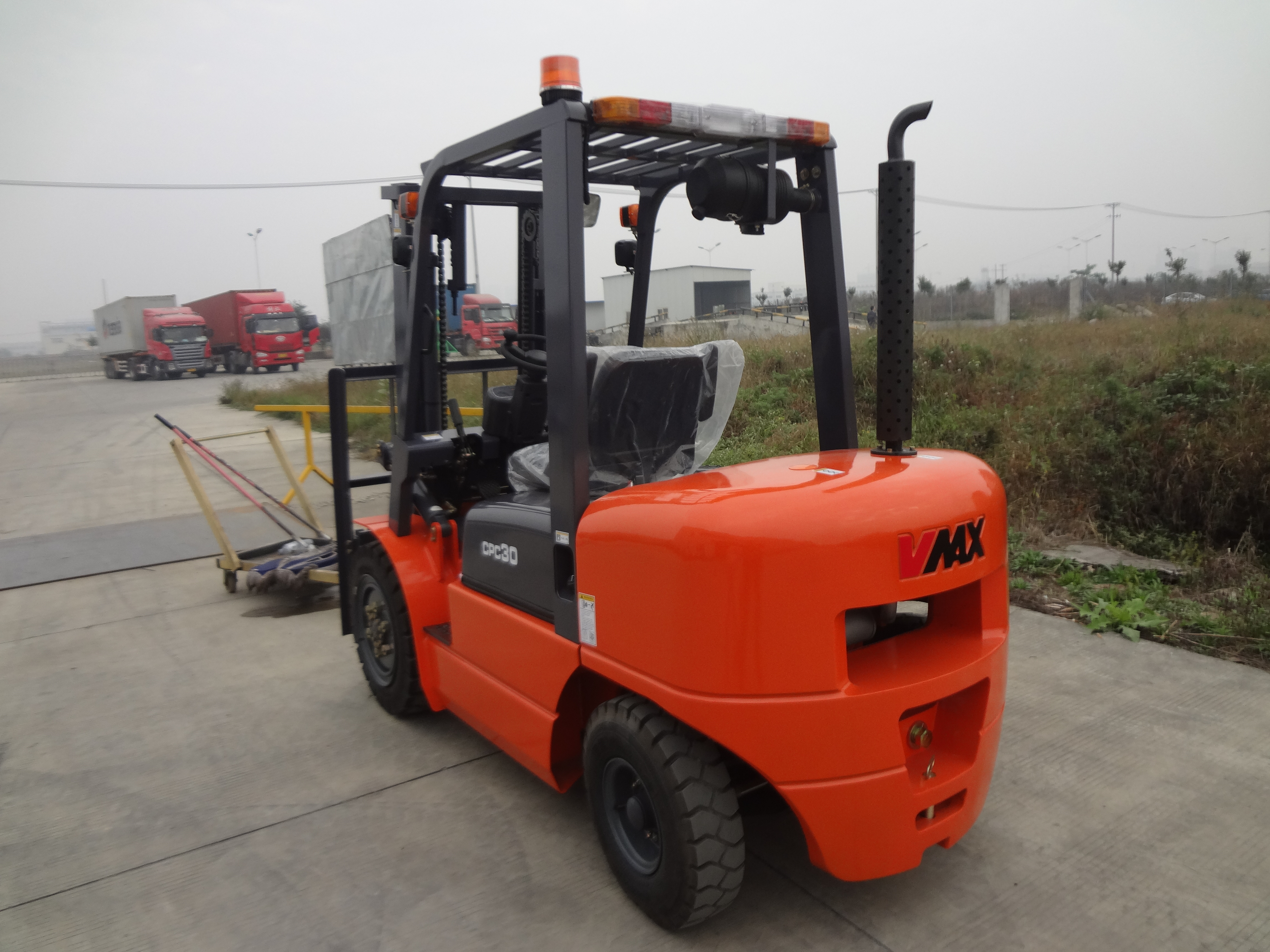

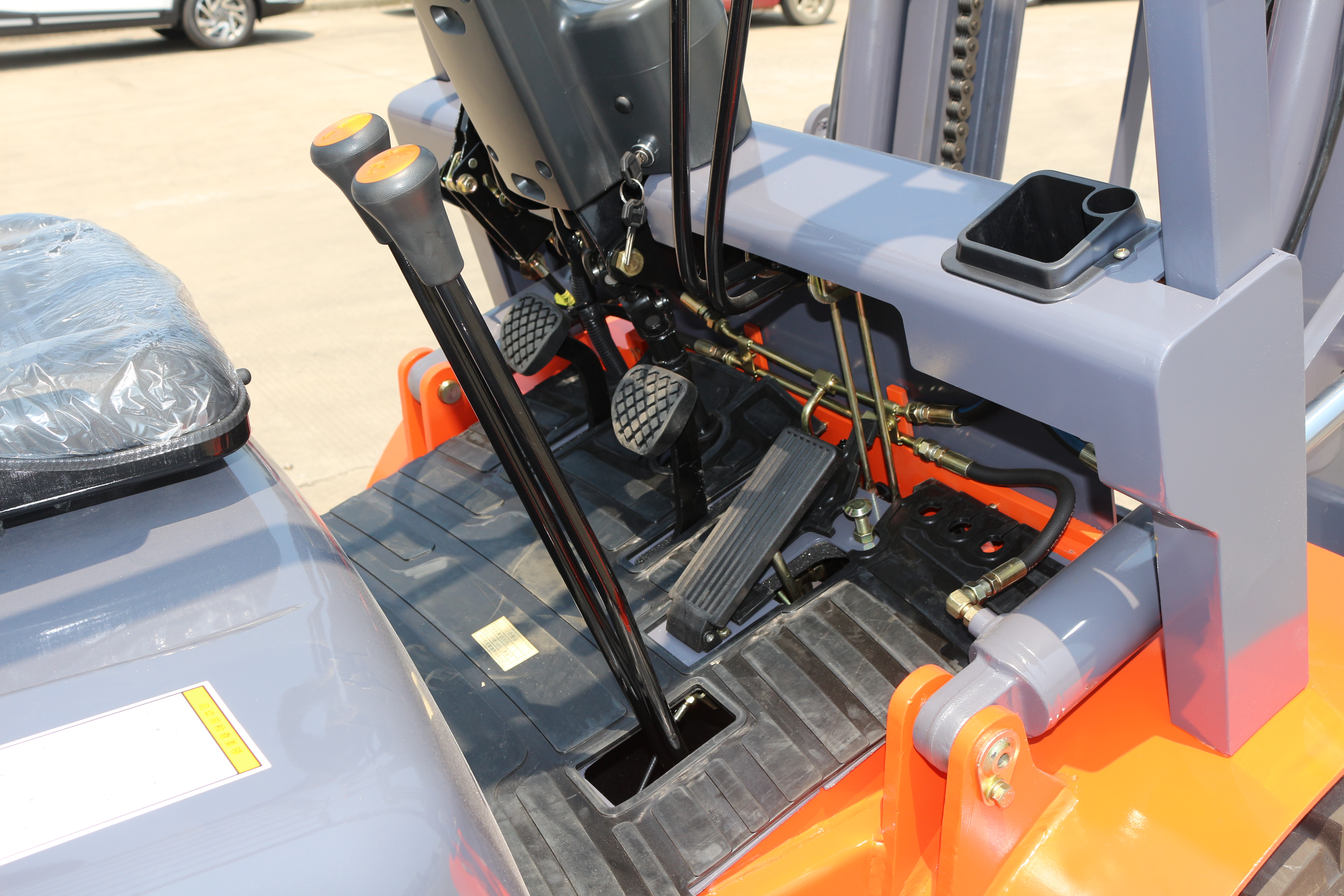

    Please seem more real image of the truck CPC30 from our factory:





    About us:

    Anhui VMAX Heavy Industry Co.,Ltd is the subsidiary of Hengtian Group, and is responsible for the import and export business of VMAX the sales channels and marketing network management, and providing forklifts, spare parts, and after-service to overseas.
    Anhui VMAX Heavy Industry Co.,Ltd is a major enterprise in the forklift truck manufacturing industry in China.VMAX has a complete product range of material handling equipment, from 1-16t internal combustion counterbalance forklift, 1-5t electric counterbalance forklift truck, warehouse equipment, reach stacker and more. Utilizing our state-of-art R&D center, our provincial level technology center, efficient production support system and our strong marketing leading system, more 40 abroad agents, all these offers strong support to our customers.






    Thanks.
