Hydraumatic Pedal Electric Warehouse Forklift Machine 2500kg CPD25

Ask Lasest Price
Brand Name :	VMAX
Model Number :	cpd25
Certification :	CE,SGS,BV
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3000unit / year
Delivery Time :	45 DAYS
Price :	Negotiable

Add to Cart

Product Details
Company Profile

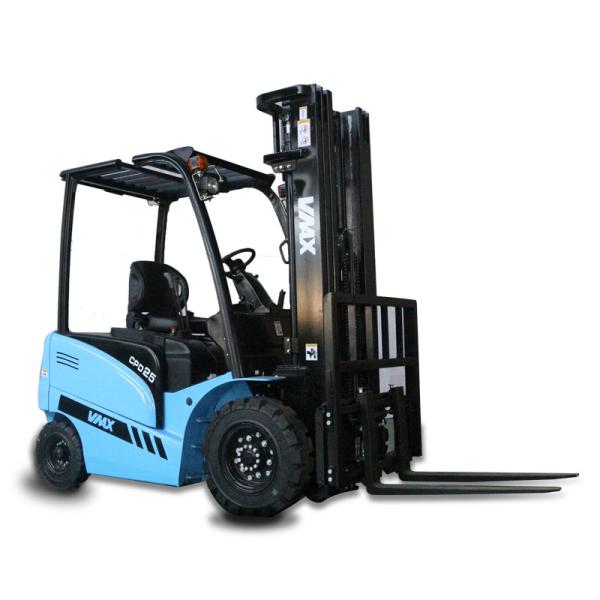

Hydraumatic Pedal Electric Warehouse Forklift Machine 2500kg CPD25

Electric Warehouse Forklift Quick Details

Brand Name:vmax

Model Number:CPD25

Type:electric fork-lift truck

Power Souce:AC Motor

Rated Loading Capacity:2500kg

Max. Lifting Height:6000mm

Min. Lifting Height:3000mm

Fork Length:1070

Fork Width:120

Overall Dimensions:3350*1150*2220

Certification:ISO,CE,SGS,BV

After-sales Service Provided:Engineers available to service machinery overseas

Operation type:car type

Load capacity:2500

Drive System:DC/AC

Electrical control system:Curtis from America

Fork size:40X120X1070

Load center:500m

Weight with battery:3450

Type of tyres:Pneumatic tire

Safety Device:Safety seat with steady

Others:Free tool box,spare parts

Electric Warehouse Forklift SPECIFICATION:

SPECIFICATIONS of 1.5-3.5Ton Electric Forklift
Manufacturer's Data and Desigh Characteristics
Feature
1.1	Brand		Vmax	Vmax	Vmax	Vmax	Vmax	Vmax
1.2	Model		CPD15	CPD18	CPD20	CPD25	CPD30	CPD35
1.4	Operation type		car type	car type	car type	car type	car type	car type
1.5	Load capacity	Q (kg)	1500	1800	2000	2500	3000	3500
1.6	Load center	C (mm)	500	500	500	500	500	500
2.1	Weight with battery	kg	3450	3650	4400	4600	4980	5100
Tire,chassis
3.1	Tire Type,Driving wheel/Load wheel		Pneumatic tire	Pneumatic tire	Pneumatic tire	Pneumatic tire	Pneumatic tire	Pneumatic tire
size
4.1	Mast tilt,Forward/ backward	α/β(°)	6/12	6/12	6/12	6/12	6/12	6/12
4.2	Mast height after mast fall	h1(mm)	1995	1995	1995	1995	2025	2025
4.3	Free lift height	h2(mm)	120	120	100	100	100	100
4.4	Standard Mast height	h3(mm)	3000	3000	3000	3000	3000	3000
4.7	Overhead guard height	h6(mm)	2170	2170	2220	2220	2220	2220
4.8	Overall length	I1(mm)	2995	2995	3350	3350	3620	3620
4.9	Vehicle width	b1/b2(mm)	1080/1070	1080/1070	1150	1150	1220	1220
4.1	Fork size	s/e/l(mm)	40x100x920	40X100X920	40X120X1070	40X120X1070	45X125X1070	50X125X1070
4.11	Channel width, with 1000X1200mm pallet	Ast(mm)	3970	3970	4210	4210	4520	4520
4.12	Channel width, with 800X1200mm pallet	Ast(mm)	4015	4015	4260	4260	4560	4560
4.13	Turning radius	Wa(mm)	1920	1920	2100	2100	2300	2300
Performance
5.1	Walking speed,loaded/ withoutload	km/h	10.5/11	10.5/11	13/13.5	13/13.5	11/12	11/12
5.2	lifting speed,loaded/load	m/s	0.3/0.45	0.3/0.45	0.3/0.45	0.3/0.45	0.23/0.37	0.23/0.37
5.3	Dropping speed loaded/without load	m/s	0.45/0.44	0.45/0.44	0.44/0.435	0.44/0.435	0.50/0.48	0.50/0.48
5.6	Maximum traction,loaded	N	11000	11000	17000	17000	18000	18000
5.8	Max grade ability,loaded/ without load	%	10.5/14	10.5/14	10.5/14	10.5/14	10.5/12	10.5/12
Drive
6.1	Drive motor power	kw	8	8	11	11	16.6	16.6
6.2	Drive motor power	kw	11	11	8.6	8.6	10	10
6.4	Level voltage/ Capacitance	V/Ah	48/400 (max545)	48/400 (max545)	48/500 (max700)	48/630( max700)	80/500(max550)	80/500(max550)
Others
7.1	Drive System	DC	DC	DC	DC	DC	DC	DC
