Chutes Corn Color Sorter

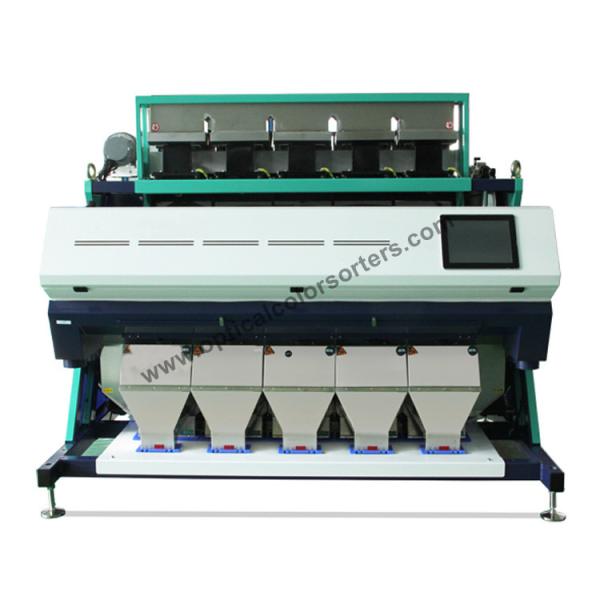

FIve Chutes Corn Color Sorter
1, image acquisition system:
The high-definition full-color CCD camera image acquisition system
is used to realize the comprehensive acquisition of materials (RGB)
red, green and blue, and to deeply identify small and fine ordinary
color sorters that cannot be selected.
2, cloud object system
Autonomous cloud control, cloud computing technology, online
operation, online monitoring, online services, free upgrades.
3. Dust removal system
The air-selective dust removal system automatically selects the
light objects and dust attached to the material to effectively
improve the color selection accuracy and effect.
4, image processing system
International high-end full-color line scanning technology,
DSP+FPGA international leading edge processing technology, color
and shape combined with multiple modes of intelligent and complex
algorithms, one-time removal of corn spots, moldy grains, coke
paste, insect eyes, black spots, etc. .
5, solenoid valve
Independent intellectual property rights, self-developed special
color solenoid valve for color sorting machine; special
high-strength material, strong suction, no residual magnetism,
linear airflow, accurate hitting, high consistency, greatly
reducing the ratio of take-out; frequency up to 1200hz per second,
most The fast response time is within 0.6ms; the service life is
5-10 billion times.
6, the operating system
The intelligent operation platform is easy to operate and easy to
master, realizing man-machine dialogue, intelligent docking, and
peace of mind.
7, intelligent wind curtain function design
Through the fan blower system, high-speed airflow is generated to
quickly remove the dust, light objects and the like in front of the
lens to ensure resolution and color selection accuracy.
Product parameters
| Model | ZRC5-64X | ZRC7-64X | ZRC8-64X | ZRC10-64X | ZRC12-64X |
| Code Number | 6SXZ-320 | 6SXZ-428 | 6SXZ-512 | 6SXZ-640 | 6SXZ-768 |
| Output(t/h) | 8-12 | 10-15 | 13-25 | 16-30 | 20-38 |
| Bad:Good | 20:1 | 20:1 | 20:1 | 20:1 | 20:1 |
| Sorting Accuracy(%) | >99.9% | >99.9% | >99.9% | >99.9% | >99.9% |
| Voltage(v/Hz) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| Power(Kw) | 8-12 | 10-15 | 13-25 | 16-30 | 20-38 |
| Weight(Kg) | 1000 | 1350 | 1510 | 1850 | 2150 |
| Dimension(mm) | 2185*1710*1720 | 2815*1710*1720 | 3130*1710*1740 | 3760*1710*1740 | 4390*1707*1757 |
Remarks: This parameter takes corn as an example (including 3% of
impurities). The specific indicators vary with materials and
impurities. If the product is updated without prior notice, the
actual machine shall prevail.
